VC 4545
- Rigid 3-axis machine, purpose-built for machining press tools, moulds and dies
- Upper gantry machine design for high dynamics and machining precision
- Unique closed transverse (X-axis) and cross-support design with internally mounted quadruple-guided slide (Y- and Z-axis)
- Constant machining results due to uniform thermosymmetric guidance

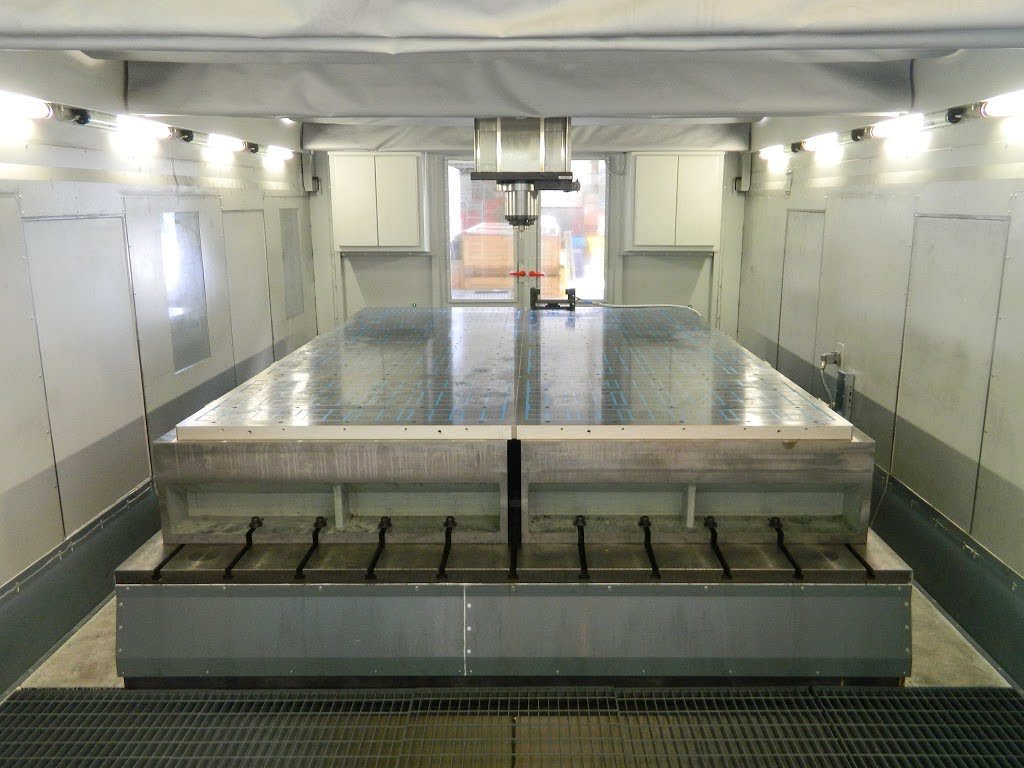

- Rigidly fixed workpiece allows for high surface quality
- High manufacturing productivity – machine is designed for roughing and finishing in single clamping
- Very compact machine, large working space with relatively small footprint
- Modifiable distance between spindle face and table clamping surface
- Ergonomic layout – easy operation and access to working area
- Convincing price/performance ratio
Downloads
Technical data
| Travels | |
|---|---|
| X-axis [mm] | 4.500 |
| Y-axis [mm] | 4.500 |
| Z-axis [mm] | 1.500 |
| Optional spindle / head | |
|---|---|
| Power (S1/100%) [kW] | 32 |
| Power (S6/40%) [kW] | 40 |
| Torque (S1/100%) [Nm] | 306 |
| Torque (S6/40%) [Nm] | 390 |
| Speed [1/min] | 14.000 |
| Tool holder | HSK - A100 |
| Optional spindle / head | |
|---|---|
| Power (S1/100%) [kW] | 52 |
| Power (S6/40%) [kW] | 70 |
| Torque (S1/100%) [Nm] | 1.000 |
| Torque (S6/40%) [Nm] | 1.335 |
| Speed [1/min] | 2.500 |
| Tool holder | HSK - A100 |
| Other | |
|---|---|
| Clamping surface [mm] | 5.000 x 4.800 |
| Workpiece weight [kg/m2] | 7.000 |
| Feed rate [mm/min] | 40.000 |
| Acceleration [m/s2] | 3 |
| Machine weight [kg] | 115.800 |
